WATER & INDUSTRIAL APPLICATIONS
Industrial water pumps for water supply, cooling, dewatering and wastewater applications in Thailand. Explore split-case, end-suction, compact, mixed-flow, sewage and sump configurations with documented project references.
MANUFACTURER RANGE OVERVIEW
The table below follows the Pumpsense India product list. It is separate from the application-specific HVAC figures in the Thailand brochure.
| Series | Discharge size | Flow up to (m³/h) | Head up to (m) | Speed up to (rpm) |
|---|---|---|---|---|
| HS single-stage | 50-400 mm | 3,000 | 200 | 3,000 |
| HST two-stage | 65-250 mm | 1,200 | 360 | 3,000 |
| CSC compact | 50-250 mm | 1,200 | 90 | 3,000 |
| ES end-suction | 32-200 mm | 1,000 | 140 | 3,000 |
| ESL large end-suction | 200-450 mm | 3,000 | 180 | 2,300 |
| SW sewage | 100-600 mm | 3,000 | 100 | 1,500 |
Source: Pumpsense India product list, checked 19 October 2026.
PRODUCT FAMILIES
Product descriptions are based on the company presentation and manufacturer literature. Detailed materials and ratings are agreed at selection.

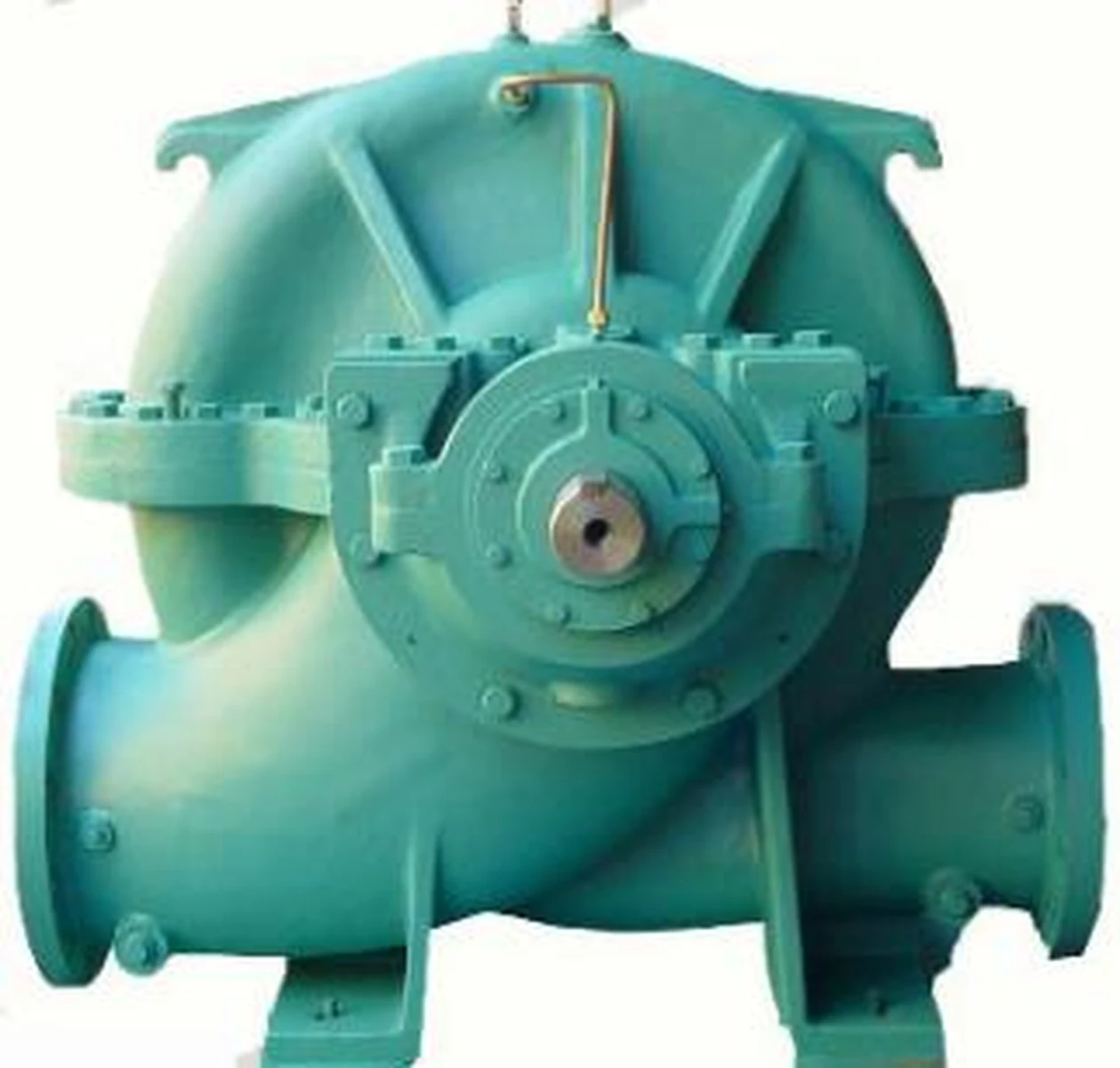

HS SERIES
Double-entry, axially split-case construction. The company literature describes horizontal and vertical arrangements for industrial and water duties.
Source: Company presentation, slides 5-7.
HST SERIES
Two-stage split-case arrangements for higher-head requirements. Illustration: a two-stage configuration from the company presentation; finish and build are project-specific.
ES SERIES
A back-pull-out end-suction family. The company presentation identifies the smaller range with ISO 2858 / ISO 5199 references.
Source: Company presentation, slides 9-10.

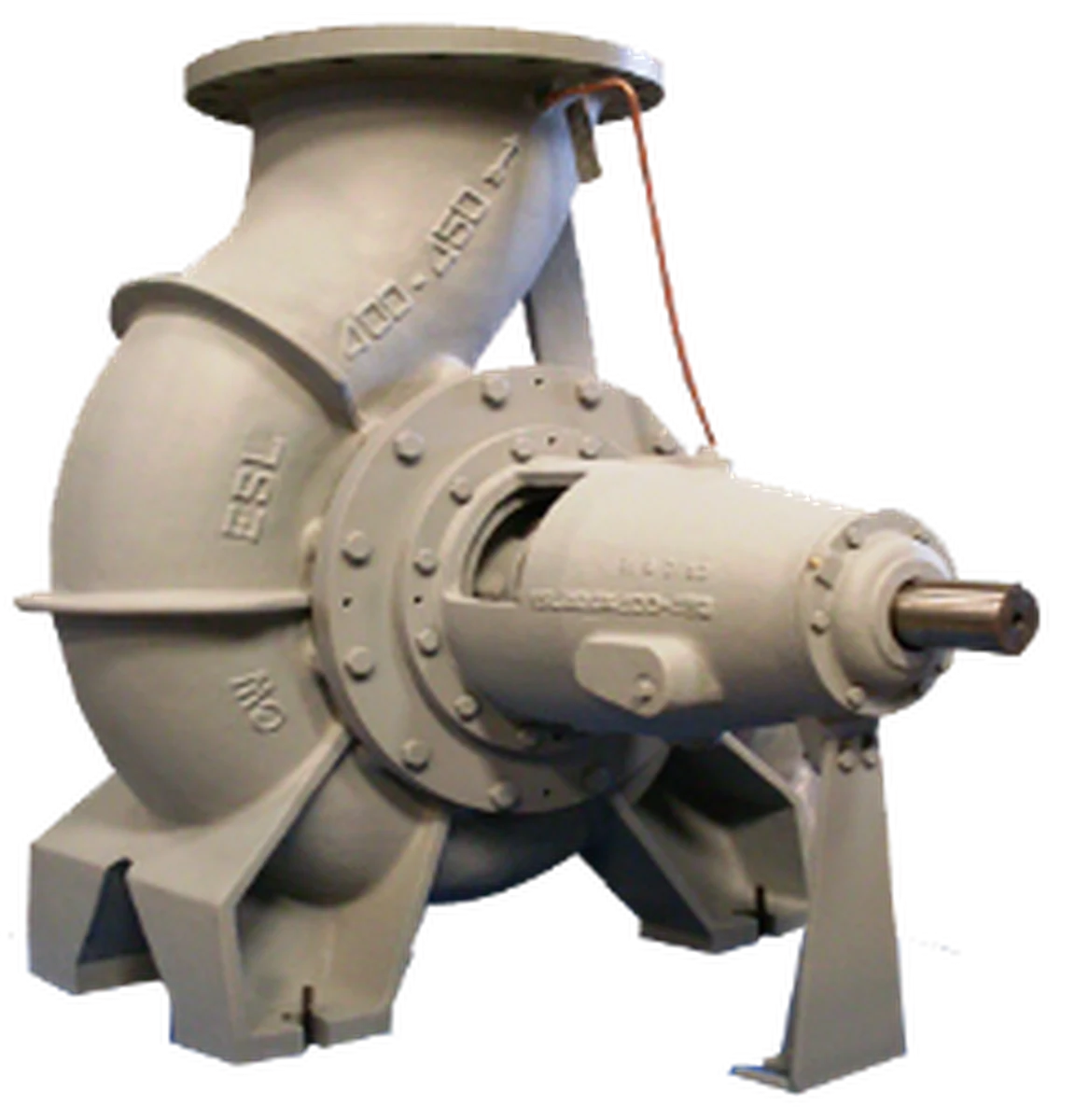

ESL SERIES
Larger end-suction configurations for water and industrial services. Select the hydraulic size and bearing arrangement to suit the required duty.
Source: Company presentation, slides 9-11.

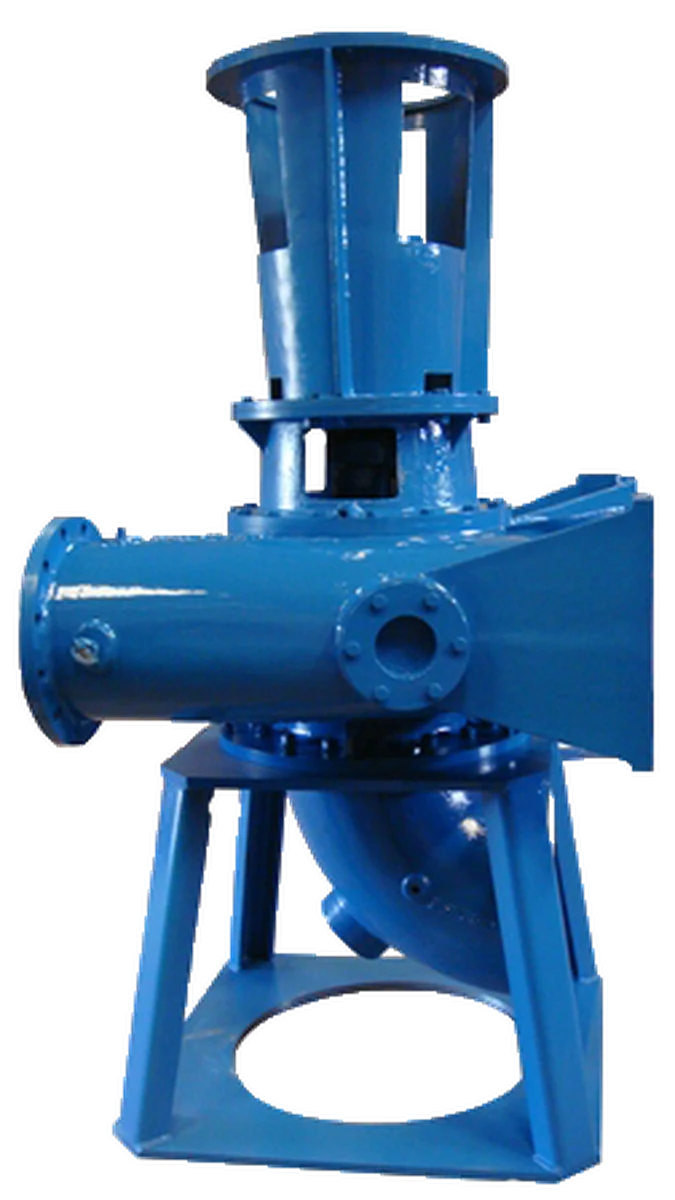

SW SERIES
The manufacturer describes non-clog sewage pumps with two- or three-vane impeller designs and horizontal or vertical arrangements.
Source: Pumpsense India product list - SW.

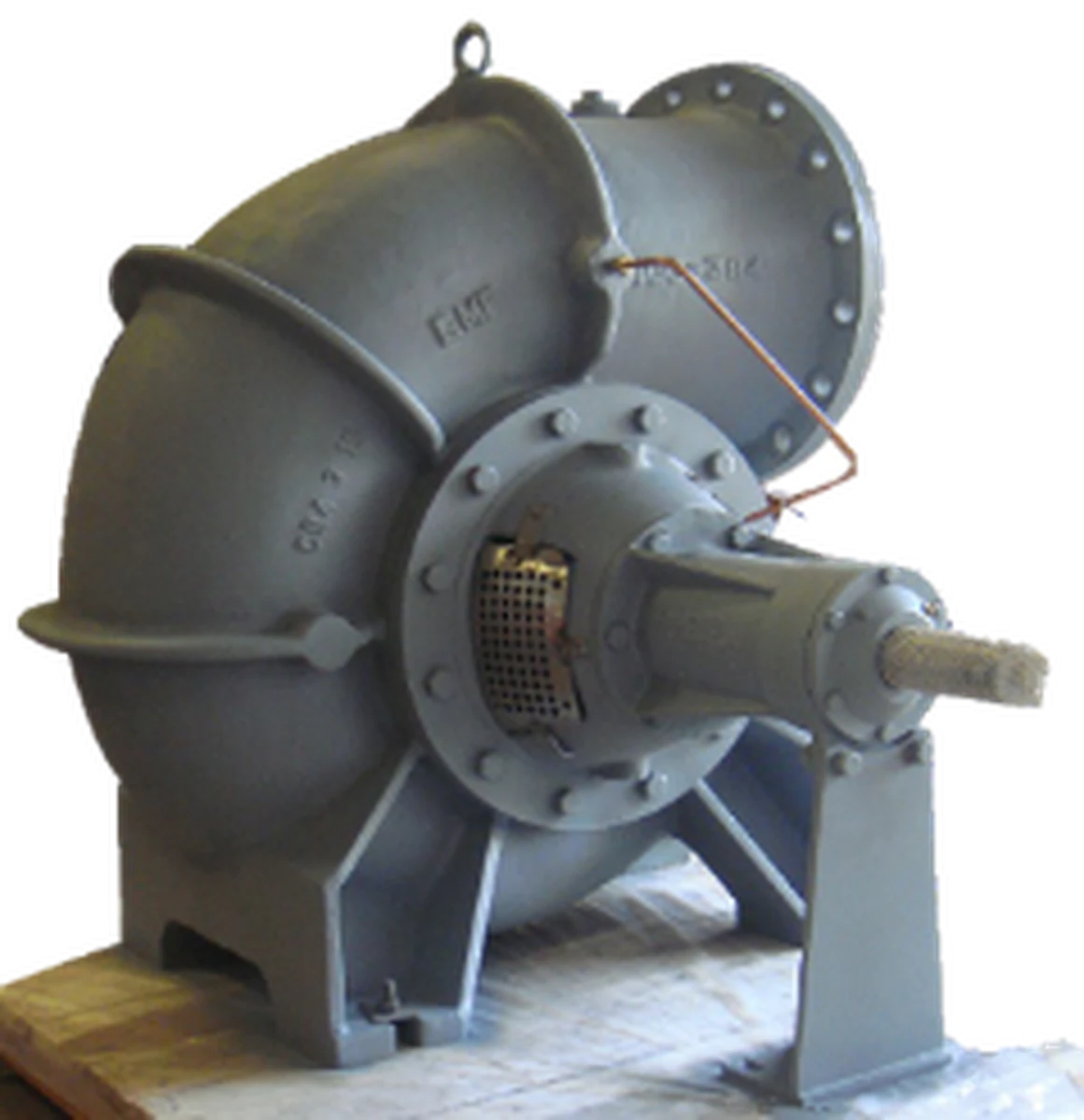

EMF SERIES
The EMF family is identified in the company presentation as mixed flow. Discuss the required water-handling application with the engineering team.
Source: Company presentation, slide 9; manufacturer summaries require clarification.
CSC / COMPACT SPLIT-CASE
The CSC reference page describes standard mechanical-seal, high-pressure, vertical and packed-gland variants. It lists 12 bar standard and 20 bar high-working-pressure executions; the selected model and version must be confirmed.
Source: Pumpsense India CSC reference page.
ENGINEERED ARRANGEMENTS
Discuss special installation needs, replacement interfaces and the required construction before choosing a configuration.

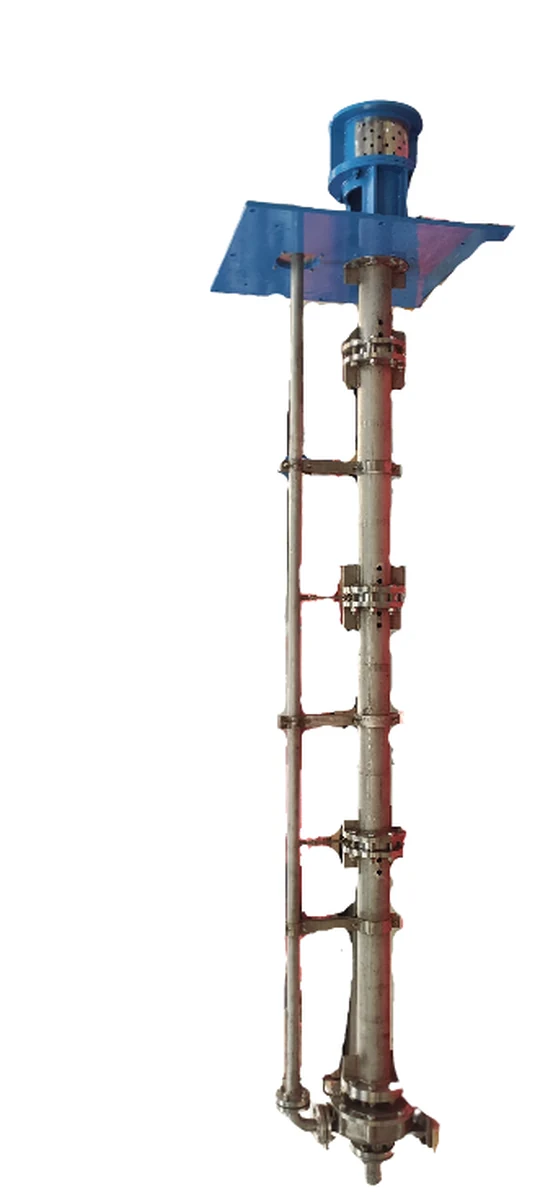

VERTICAL SUMP
The portfolio includes vertical sump configurations. Supply sump geometry, liquid levels, fluid properties and the required duty.

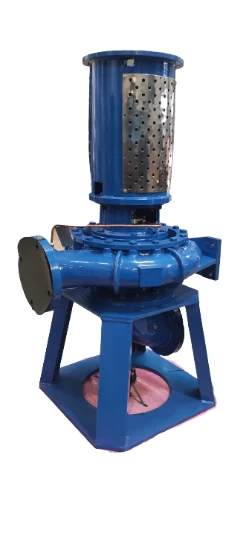

VERTICAL END-SUCTION
Vertical end-suction and special shaft arrangements can be reviewed against the available space and site connections.

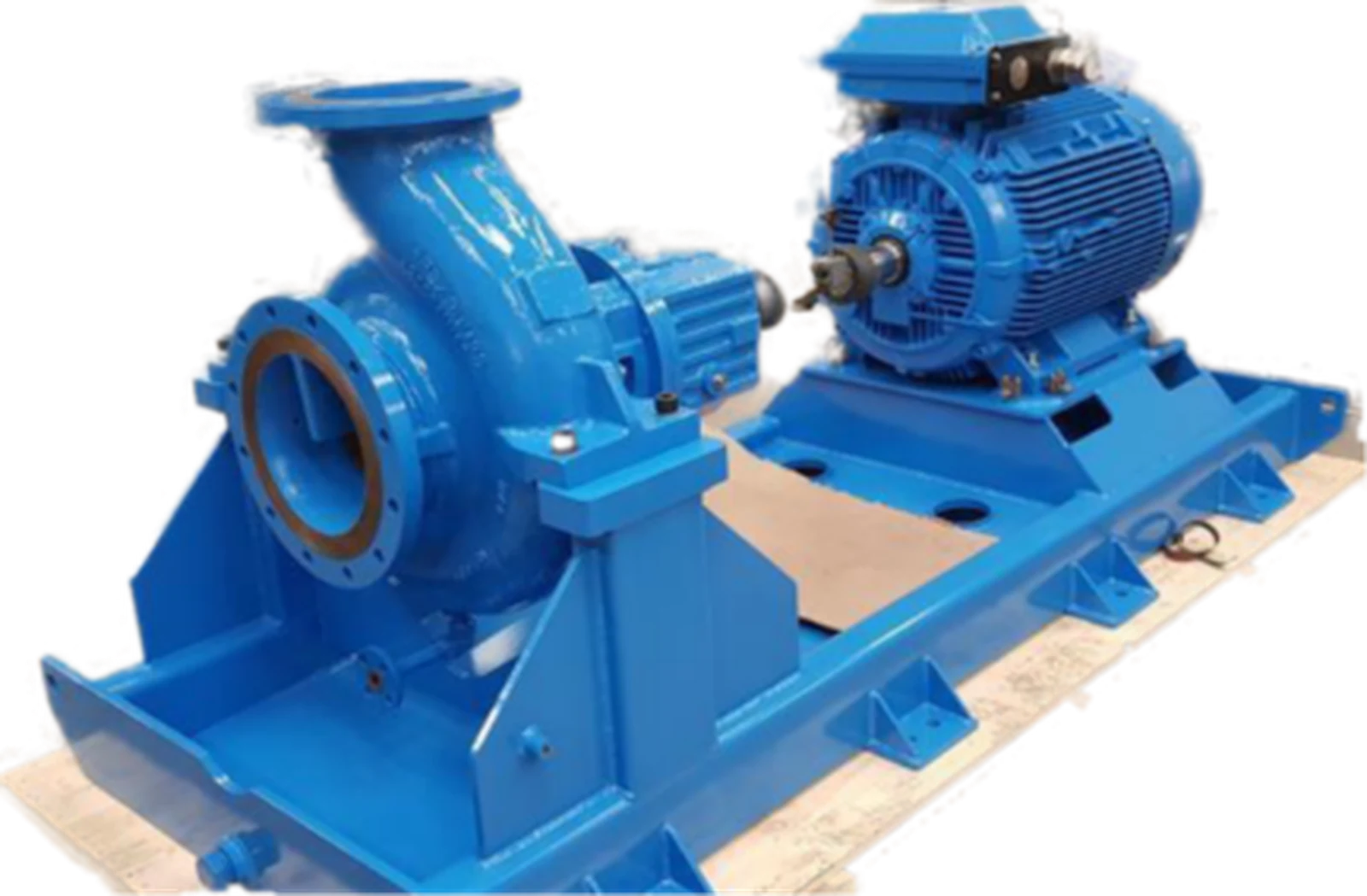

SPECIAL CONSTRUCTION
The company presentation includes OH2 and other engineered configurations. Confirm the applicable construction and project requirements.
Source: Company presentation, slides 22-23; Pumpsense India special-pump portfolio.
MANUFACTURER PROJECT EXPERIENCE
Real project references from the manufacturer’s published portfolio, with the application and source clearly identified.

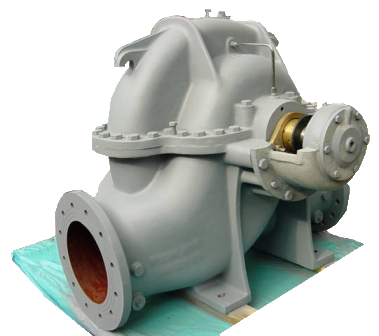

Kentucky, USA
Municipal water supply
12-inch double-volute split-case pump.
Manufacturer reference

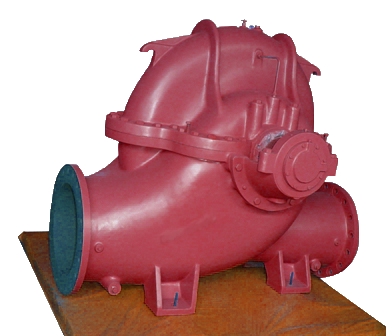

China
Municipal water supply
Seven 16-inch / 18-inch split-case units supplied.
Manufacturer reference

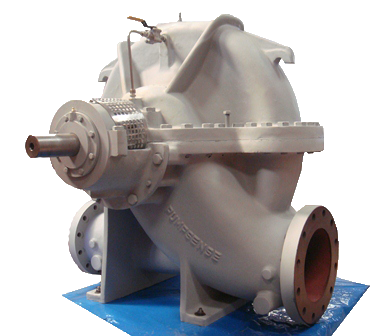

Philippines
Mine dewatering
Twenty high-speed double-volute dewatering pumps, size 8 x 10 x 26 inches.
Manufacturer reference

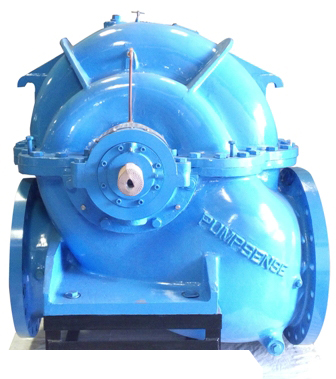

Egypt
Raw river water intake
16HS21 river-intake pump: 660 L/s at 15 m head and 992 rpm.
Manufacturer reference

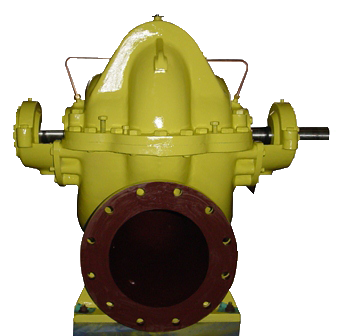

Guangzhou, China
District cooling water
District-cooling pump rated 1,800 m³/h at 35 m head.
Manufacturer reference
Australia
Chilled-water circulation
10 x 12 x 13-inch pump supplied for chilled-water service.
Manufacturer referenceHydraulic-motor drive at 1,200 rpm; pump size 12 x 14 x 18 inches.
View the manufacturer’s complete reference gallerySource: Pumpsense India’s HS project gallery, checked 20 October 2026. These are manufacturer project references. Applications include raw water, dewatering and cooling-water circulation; they are not all potable-water projects or local Thailand installations. The downloadable sheet presents the five core references.
YOUR APPLICATION
Use the water-pump inquiry option to share technical requirements and site information.
Water quality, temperature, solids, viscosity and any corrosion or material constraints.
Minimum and maximum flow, required head, suction pressure or levels, pipework and operating hours.
Pump orientation, flange details, driver supply, frequency, access, quantity and project documentation.
YOUR NEXT PROJECT
Send the operating duty and fluid details to start a model-specific review.
